Dual Index

(Dual Linear VCA / 2 Channel Voltage Controlled Mixer)

A dual, high quality, linear voltage controlled amplifier with both offset gain and CV attenuation for each channel plus a mix out.

• 2 Standalone VCAs
• Fully Buffered Mix Output
• CV Attenuator Knob
• Input Gain Knob
• CV Range: 0-5v

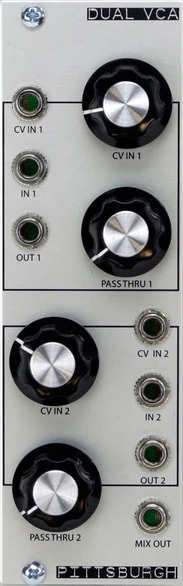

Module Controls

Index 1 (VCA 1)
CV - CV Input used to control the VCA.
CV Knob - CV input attenuator.
In - Signal Input
Out - Signal Output

Index 2 (VCA 2)
CV - CV Input used to control the VCA.
CV Knob - CV input attenuator.
In - Signal Input
Out - Signal Output
Mix - Fully Buffered mix of the VCA 1 and VCA 2 outputs.

Size: 8hp
Depth: 35mm
Power Usage: 30mA
