Lifeforms Dual VCA
Dual VCA and Voltage Controlled Mixer
Suggested Retail Price - $159



The perfect voltage controlled amplifier for both audio and CV applications. Dual, high quality linear voltage controlled amplifiers with offset gain, CV attenuation, and a mix out. Each VCA includes a CV attenuator and input pass through attenuator. The output of each VCA is sent to a fully buffered mix output that allows the Dual VCA to act as two channel voltage controlled mixer.

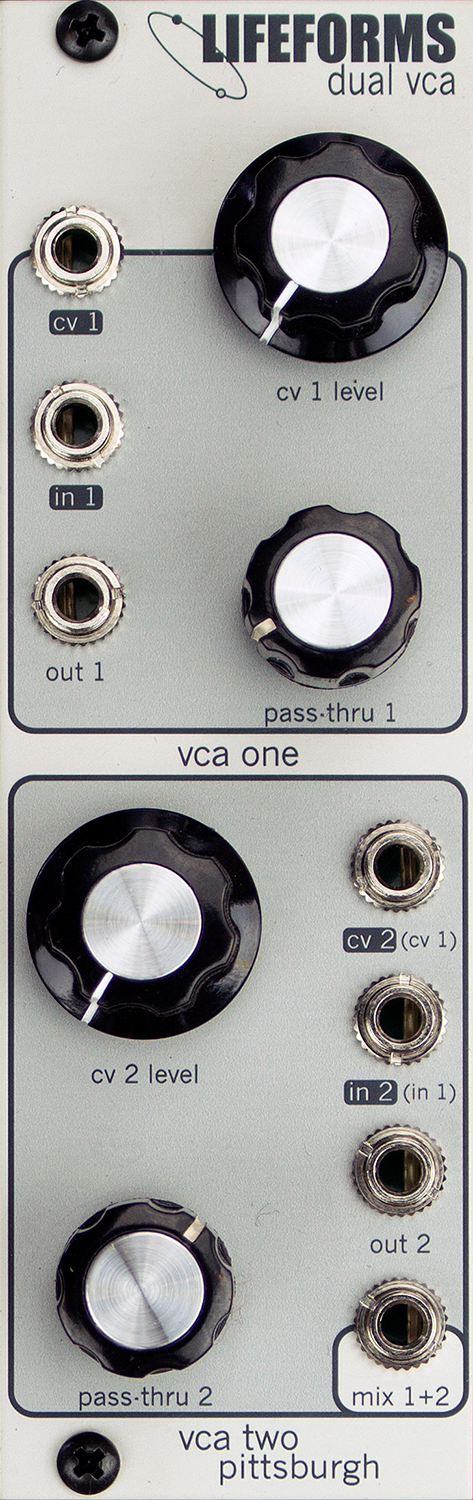

Dual VCA Controls

CV In 1 Jack - CV Input used to control the VCA.

CV In 1 Attenuator Knob - CV input attenuator.

IN 1 - Signal input jack.

Pass-thru 1 Knob - Adjusts the passthru level of the input signal.

Out 1 - Signal output jack.

CV In 2 Jack - CV Input used to control the VCA.

CV In 2 Knob - CV input attenuator.

In 2 - Signal input jack.

Pass-thru 2 Knob - Adjusts the passthru level of the input signal.

Out 2 - Signal output jack.

Mix Out - Fully Buffered mix of the VCA 1 and VCA 2 outputs.





Module Specifications
Panel size: 8hp
Depth: 24mm
Power Usage: +12v 34mA, -12v 26mA.  Does not require +5v. Reversed power polarity protection.
