LFO2
Dual Low Frequency Oscillator
Suggested Retail Price - $99

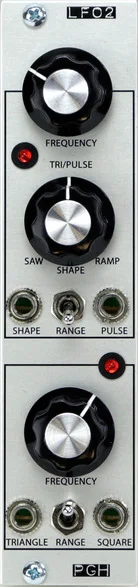

A utility dual LFO module.  The module uses two different types of low frequency oscillator circuits to provide a variety of modulation options.

LFO 1 (top of module)
A triangle based low frequency oscillator that utilizes FREQUENCY and SHAPE controls to generate shifting waveforms.  Adjusting the SHAPE control varies the shape of the SHAPE output from sawtooth (full left)  to triangle (12 o'clock) to ramp (full right) and also adjusts the pulse width of the PULSE output.

LFO 2 (bottom of module)
A simple triangle based low frequency oscillator with FREQUENCY knob and RANGE switch to control the frequency of the TRIANGLE and SQUARE outputs.

LFO 1 Controls (top)
FREQUENCY Knob - Adjust the frequency of LFO 1.
Shape Knob - Modifies the shape of the SHAPE and PULSE outputs.
SHAPE Jack - Saw / Triangle / Ramp Wave Output
RANGE Switch - Switches the frequency range of LFO 1.
PULSE - Square / Pulse Wave Output

LFO 2 Controls (bottom)
FREQUENCY Knob - Adjust the frequency of LFO 2.
TRIANGLE Jack - Triangle Wave Output
RANGE Switch - Switches the frequency range of LFO 2.
SQUARE Jack - Square Wave Output


LFO2 Specs
Size: 6hp
Depth: 35mm
Power Usage: +12v 25mA, -12v 25mA.  Does not require +5v.
