Lifeforms System Interface
Flexible Six Channel Audio Hub
Sold Out

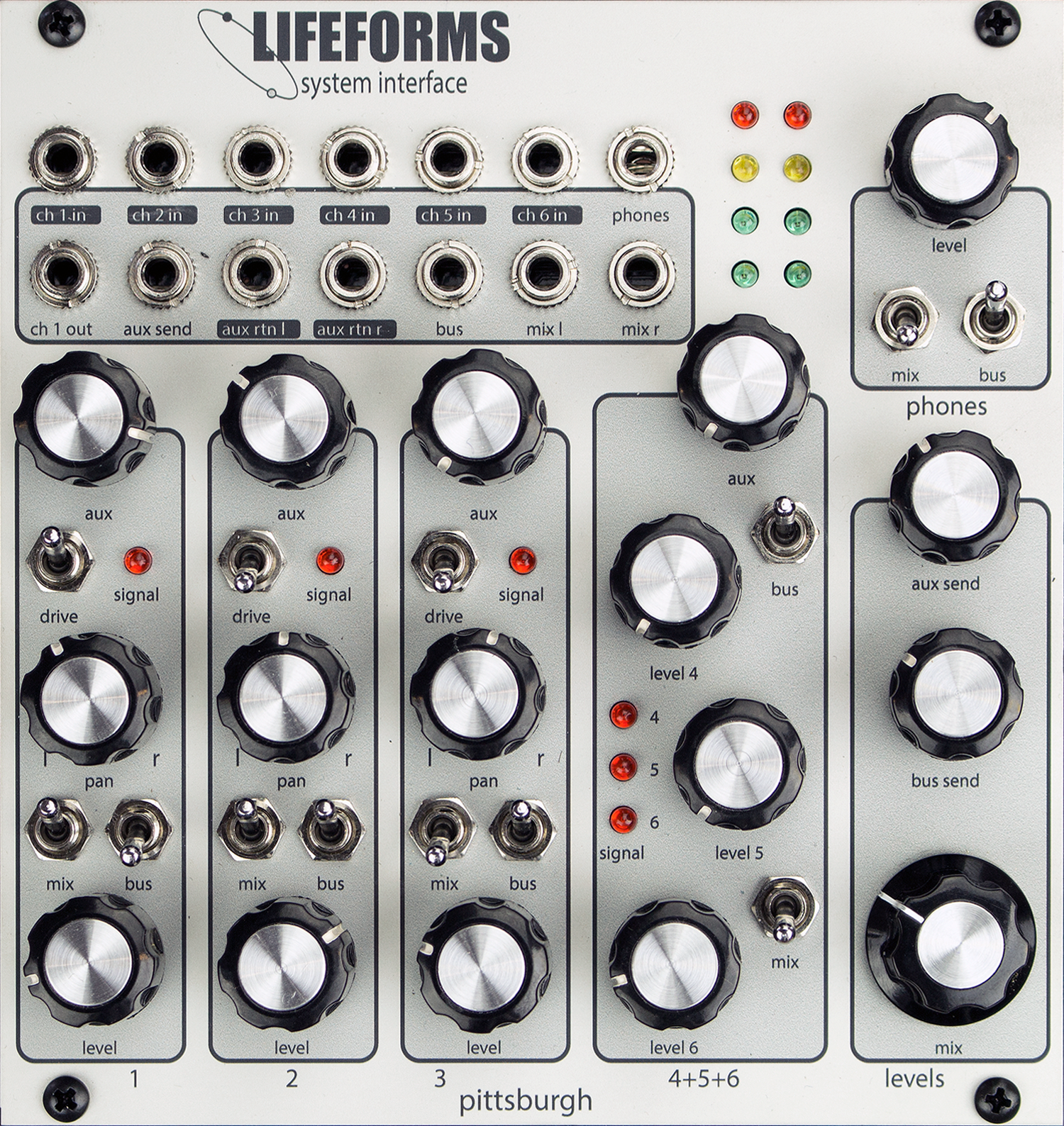

Packed with deep signal routing options and high quality preamps, the System Interface is a flexible audio hub, perfect for both studio and live performance. Squeezed into 24hp.

The System Interface is a six channel mixer with three channels featuring high quality preamps and stereo panning. Signal routing options include a post level auxiliary send with stereo aux return, and independent assignable bus and main mix sends. Headphone output can be assigned to the main mix, bus, or both.

Preamps on channels 1, 2, and 3 offer 15x of clean gain with a unique soft clipping overdrive circuit. They are perfect to raise the level of external, line level gear to modular levels or to dirty up an already modular level signal. Channel 1 has a dedicated output designed to allow it to function as an input for external sources without hogging the bus or aux send.

Because most mixes do not require each channel to have a full complement of features, channel 4, 5, and 6 share auxiliary, bus, and main mix controls allowing for maximum channels within a small footprint.

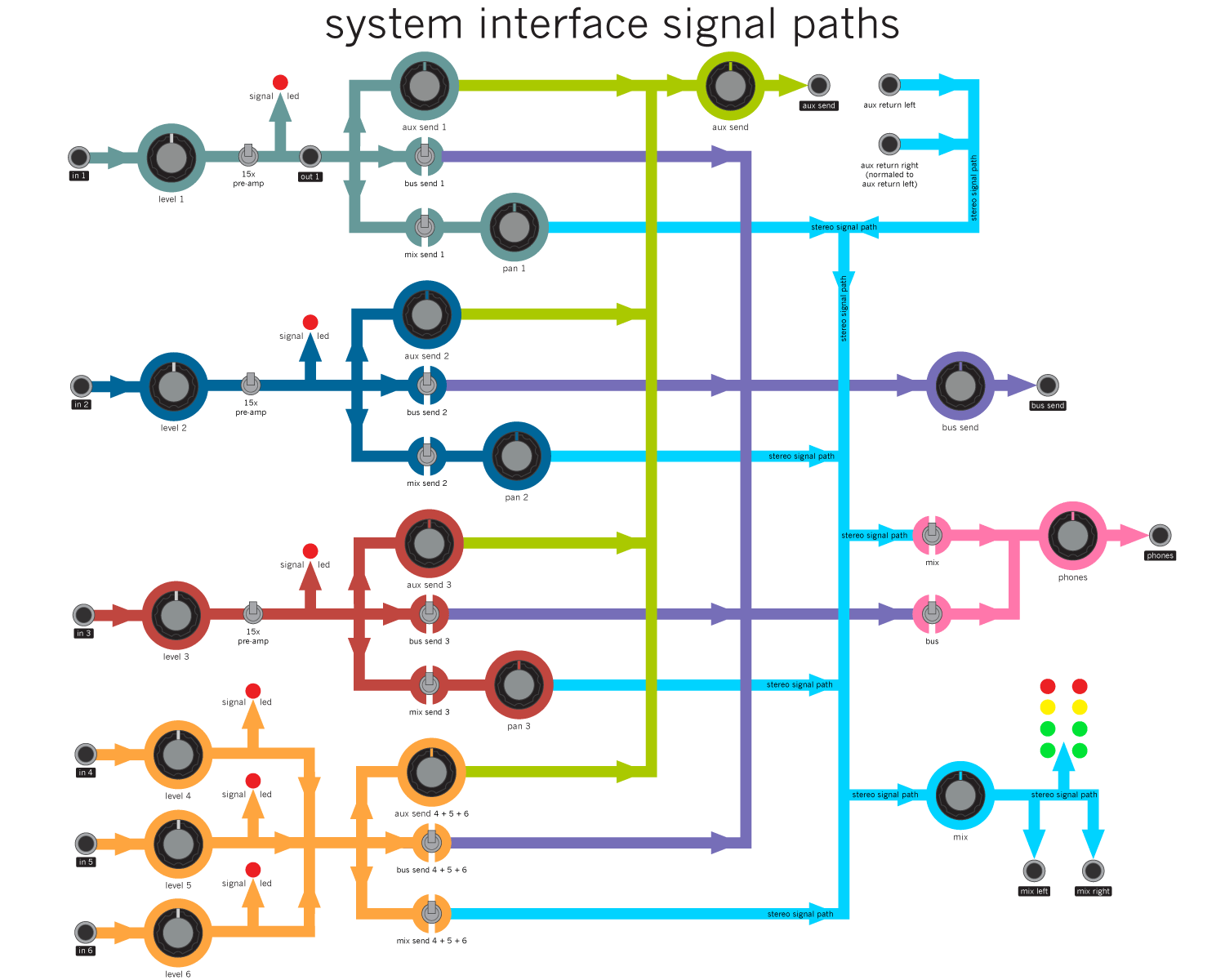

Three independent signal paths open the mixer up to complex routing possibilities. The auxiliary send can be used as an effects send or alternative mix while the bus is used to cue up sounds for live performance or to split the mixer channels into 2 independent mixers. The possibilities are deep.



System Interface Controls

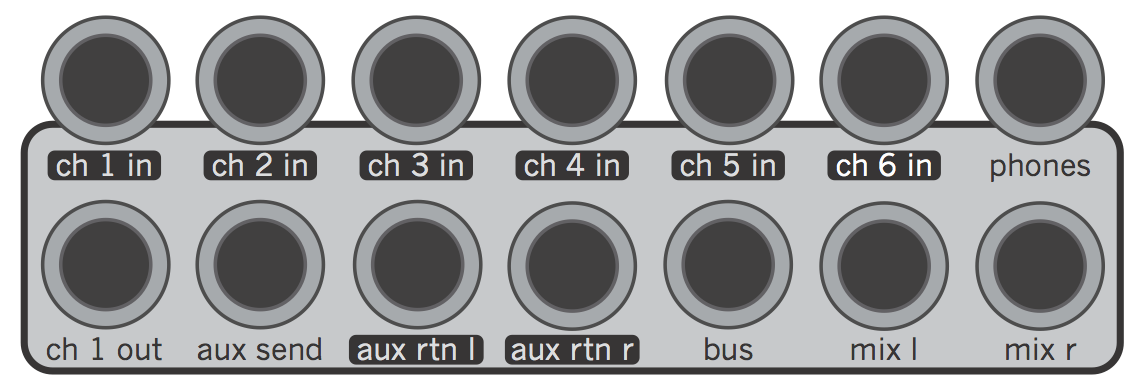

INPUT AND OUTPUT JACKS

Channel 1 Input Jack - Mixer channel 1 input jack.

Channel 2 Input Jack - Mixer channel 2 input jack.

Channel 3 Input Jack - Mixer channel 3 input jack.

Channel 4 Input Jack - Mixer channel 4 input jack.

Channel 5 Input Jack - Mixer channel 5 input jack.

Channel 6 Input Jack - Mixer channel 6 input jack.


Headphone Output Jack - Stereo headphone output jack.

Channel 1 Output Jack - Post level control and preamp channel 1 output jack.

Aux Send Output Jack - Auxiliary channel post level control output jack.

Aux Return Left Input Jack - Auxiliary left channel return. Sent to main mix out left.

Aux Return Right Input Jack - Auxiliary right channel return. Sent to main mix out right.

Bus Send Output Jack - Bus channel post level control output jack.

Main Mix Left Output Jack - Line level output. Main mix left channel post level control output jack.

Main Mix Right Output Jack - Line level output. Main mix right channel post level control output jack.


CHANNEL 1 / 2 / 3

Auxiliary Send Knob - Post level control auxiliary send.

Drive Switch - 15x preamp with soft clipping overdrive.

Channel Level LED - Post level control and preamp signal level LED.

Left / Right Pan Knob - Manual channel pan control.

Mix Channel Switch - Sends the channel signal to the main mix.

Bus Channel Switch - Sends the channel signal to the bus.

Channel Level Knob - Channel level attenuator.

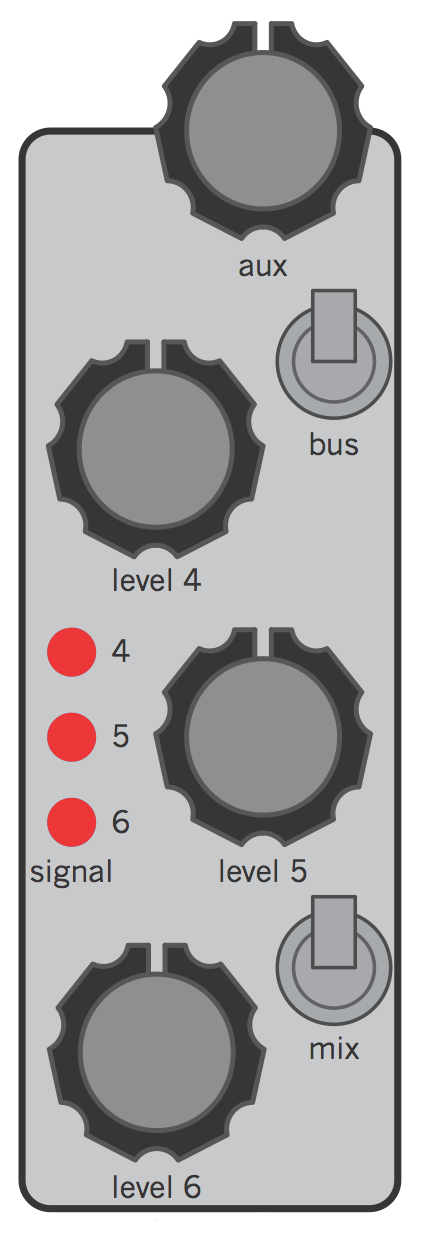

CHANNEL 4 / 5 / 6

Auxiliary Send Knob - Post level control auxiliary send.

Bus Channel Switch - Sends channels 4, 5, and 6 to the bus.

Channel 4 Level Knob - Channel level attenuator.

Channel 5 Level Knob - Channel level attenuator.

Channel 6 Level Knob - Channel level attenuator.

Channel 4 Level LED - Post level control and preamp signal level LED.

Channel 5 Level LED - Post level control and preamp signal level LED.

Channel 6 Level LED - Post level control and preamp signal level LED.

Mix Channel Switch - Sends channels 4, 5, and 6 to the main mix.

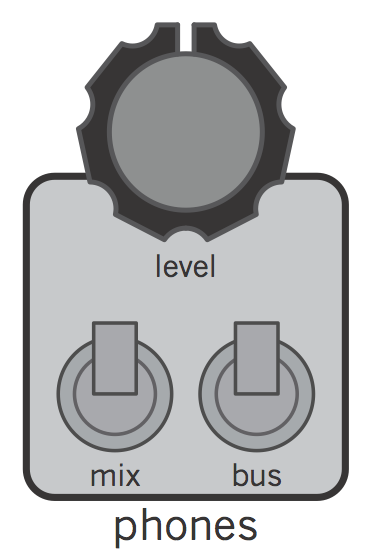

phones section

Headphones Level Knob - Post level control auxiliary send.

Mix Channel Switch - Sends the mix to the headphones.

Bus Channel Switch - Sends the bus to the headphones.

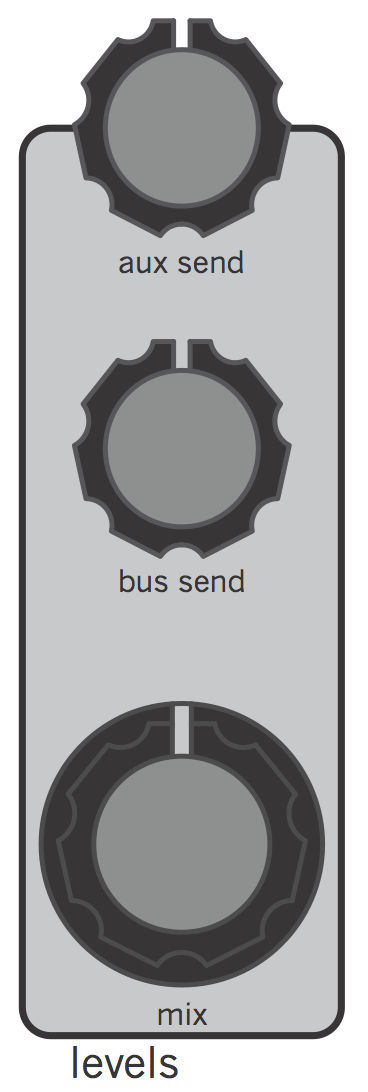

Levels SECTION

Auxiliary Send Level Knob - Auxiliary level output attenuator.

Bus Send Level Knob - Bus level output attenuator.

Main Mix Level Knob - Main Mix level output attenuator.


Module Specifications
Panel size: 24hp
Depth: 24mm
Power Usage: +12v 157mA, -12v 83mA.  Does not require +5v. Reversed power polarity protection.
